How Can the ZF NPN Hall Effect Sensor Improve Industrial Speed and Position Detection?
Modern automation systems depend on accurate sensing technology to monitor movement, position, and speed. From manufacturing equipment to automotive systems, sensors help machines operate efficiently by detecting changes without requiring physical contact.
The ZF NPN Hall Effect Sensor is a reliable magnetic sensing solution designed for industrial applications where accurate detection and long-term performance are essential. This GS100502 sensor uses Hall Effect technology to detect magnetic fields and provide dependable switching signals for control systems.
With its robust construction, NPN output configuration, and suitability for demanding environments, the ZF Hall Effect Sensor is an effective choice for engineers looking to improve automation, monitoring, and motion control applications.
Why Are Hall Effect Sensors Important in Modern Applications?
Traditional mechanical switches can experience wear over time due to physical contact between moving components. Hall Effect sensors provide a contactless alternative by detecting magnetic fields, allowing systems to achieve faster response times and improved reliability.
Hall Effect sensors are widely used because they offer:
- Contactless operation with reduced mechanical wear
- Reliable switching performance
- High resistance to vibration and environmental conditions
- Compact designs for easy installation
- Accurate speed and position monitoring
For complete automation solutions, engineers often combine sensors with reliable Industrial Automation Components to create efficient control systems for manufacturing and industrial environments.
What Makes the ZF GS100502 NPN Hall Effect Sensor a Reliable Choice?

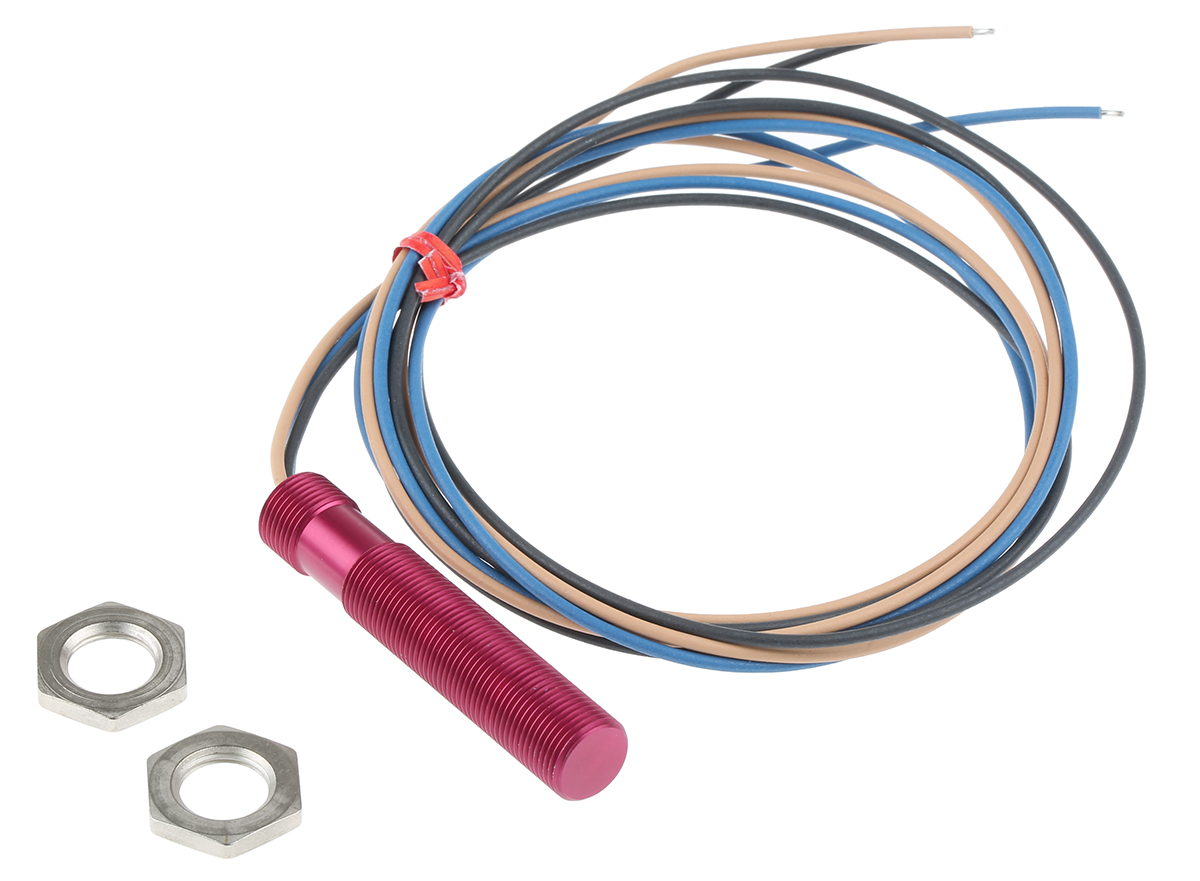

The ZF GS100502 is a Hall Effect gear tooth speed sensor designed for applications requiring ferrous edge detection and near-zero speed sensing. It provides a sinking current output and supports detection frequencies up to 15 kHz, making it suitable for high-performance sensing applications.
The sensor features a durable aluminium housing and is designed to operate in challenging industrial conditions. It supports a supply voltage range of approximately 5 V to 24 V DC and offers protection against reverse polarity, improving reliability during installation.
Key features include:
- NPN output configuration
- Hall Effect magnetic sensing technology
- Gear tooth speed detection capability
- Switching frequency up to 15 kHz
- Operating temperature range suitable for harsh environments
- Aluminium cylindrical housing
- RoHS compliance
- Reverse polarity protection
How Does a Hall Effect Sensor Work?
A Hall Effect sensor operates by detecting changes in magnetic fields. When a magnetic object, such as a gear tooth or rotating component, passes near the sensor, the magnetic field changes and the sensor generates an electrical switching signal.
The ZF GS100502 uses this principle to detect movement and provide feedback to control systems. This makes it useful for applications where precise speed measurement and position detection are required.
Unlike mechanical sensing methods, Hall Effect technology does not require physical contact, which helps improve durability and reduce maintenance requirements.
Applications of the ZF NPN Hall Effect Sensor
The ZF GS100502 is suitable for a wide range of industrial and technical applications where accurate motion detection is required.
Common uses include:
- Industrial machinery monitoring
- Gear tooth speed measurement
- Motor speed detection
- Position sensing systems
- Automation equipment
- Automotive control systems
- CNC machinery
- Motion monitoring applications
Engineers working on automated systems can also integrate sensors with PLC Controllers to create responsive and efficient machine control solutions.
Benefits of Using the ZF GS100502 Sensor in Industrial Systems
Improved Reliability
The contactless sensing method reduces mechanical wear, allowing the sensor to provide consistent performance over extended periods.
Accurate Speed Detection
The ability to detect gear movement and rotational changes makes the sensor suitable for applications requiring precise speed monitoring.
Durable Industrial Design
The robust aluminium housing helps protect the sensor in demanding environments where vibration, temperature changes, and continuous operation are common.
Easy System Integration
The NPN output design allows straightforward connection with many industrial control systems and electronic circuits.
For engineers developing advanced monitoring systems, combining sensors with Proximity Sensors can provide additional detection options for different automation requirements.
Choosing the Right Hall Effect Sensor for Your Application
Selecting the correct Hall Effect sensor depends on factors such as operating environment, sensing distance, output type, voltage requirements, and switching frequency.
The ZF GS100502 is designed for professionals who need dependable performance in speed and position detection applications. Its combination of magnetic sensing technology, industrial durability, and accurate switching makes it suitable for various automation and monitoring systems.
When designing complete sensing solutions, engineers can also explore Sensor Cable Assemblies to ensure secure and reliable connections between sensors and control equipment.
Enhance Automation Performance with the ZF NPN Hall Effect Sensor
Accurate sensing is essential for improving productivity, safety, and efficiency in modern industrial environments. The ZF GS100502 Hall Effect Sensor provides a dependable solution for detecting speed, position, and movement without the limitations of traditional mechanical switches.
Whether used in industrial machinery, automation systems, or motion control applications, this sensor helps engineers build reliable and efficient solutions.
Enrgtech provides a wide range of electronic components, sensors, and automation products to support professional engineering projects. Explore trusted sensing solutions to improve system performance and achieve greater operational reliability.
